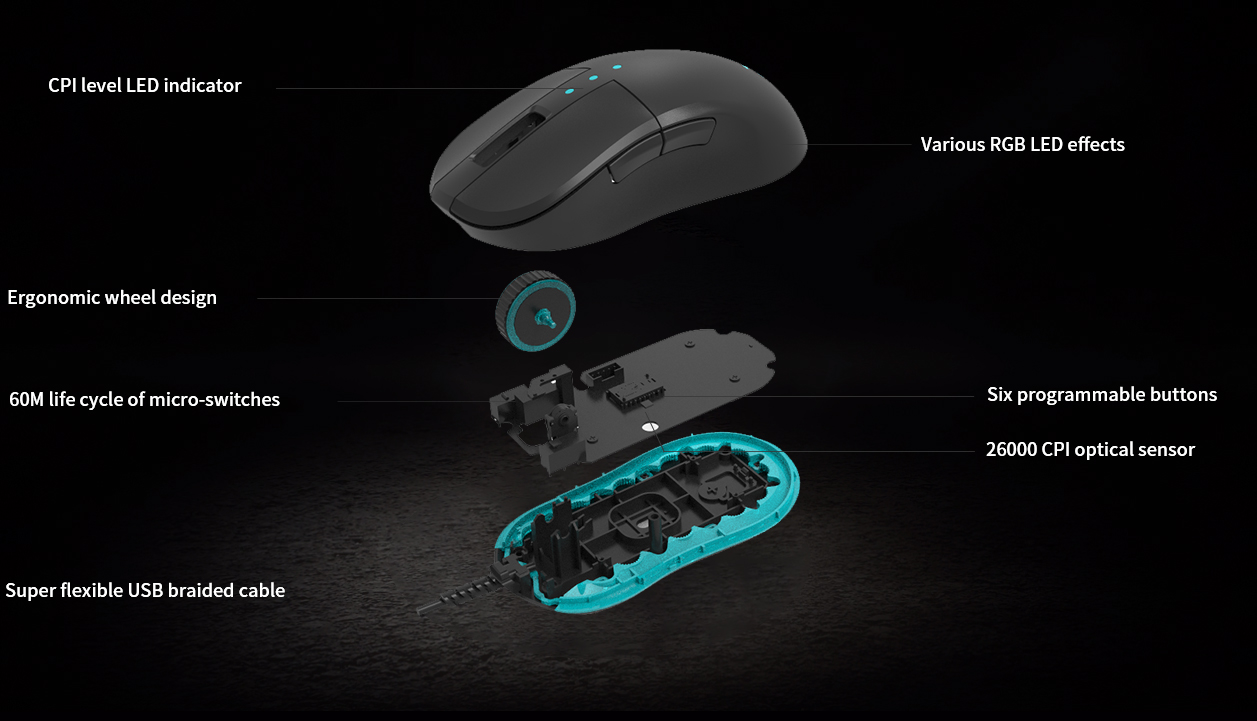

● Mid-sized ergonomic shape for various grip styles
● Light weight design
● Pixart state of the art sensor PAW3395DM
● Nordic nRF52 SoC for reliable RF communication
● Supports wired or wireless dual mode connection
● OMRON 60M switch for left/right buttons
● Up to 18x RGB LED with multiple zones and effects
● Ultra-flexible braided cable
● Friction free movement with pure PTFE skates
● Support driverless plug and play
● Additional customization and macro support
We provide full customization for global OEM/ODM customers.
Our design team includes engineers and designers in the area of mechanical design, electronic design, quality validation, production technology, software and firmware development.
| Weight (with battery) | 75 gram |
| Size | 121 x 62 x 39 mm |
| Max resolution | 26000 CPI |
| Max tracking verocity | 650 ips |
| Max tracking acceleration | 50 g |
| Number of buttons | 6 |
| Left/right switch life | 60 millions |
| Max report rate | Up to 8000Hz (*) |
| RF bandwidth | 2.4 GHz |
| Battery life | Up to 70 hours |

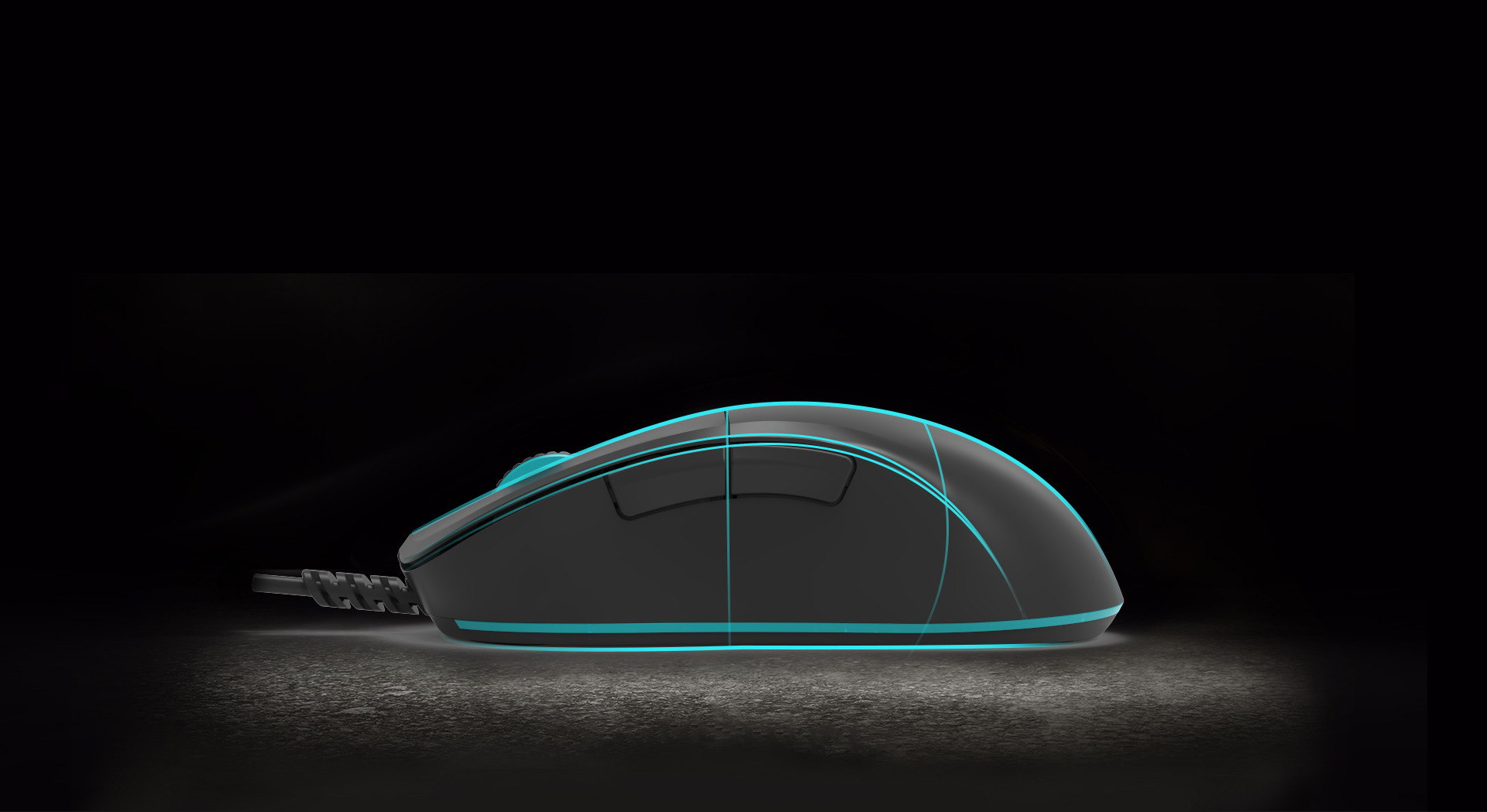

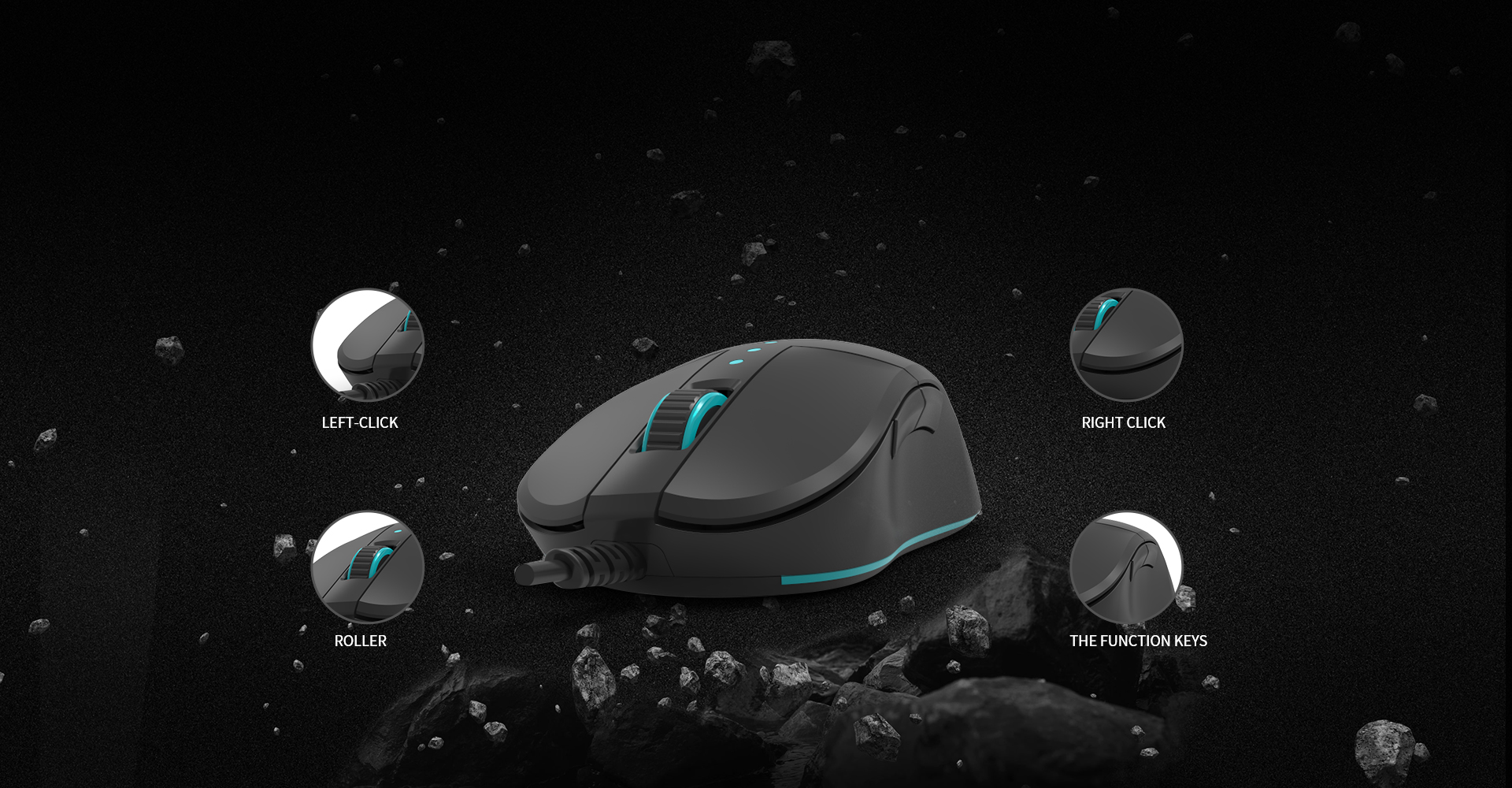

Clean design language, pure ergonomics
Suitable for palm, claw, and finger-tip grip styles

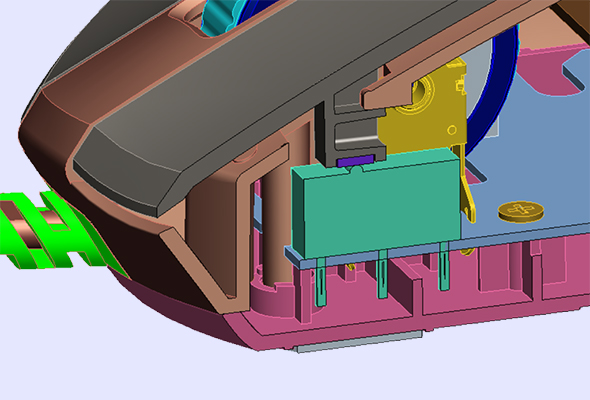

Split left/right button design for consistent button feeling
Large side button design, supports thumb roll-over triggering
CPI button placed at the bottom cover to avoid mis-touching
Wide wheel rubber for easy and comfort scrolling experience
- Design for manufacturability

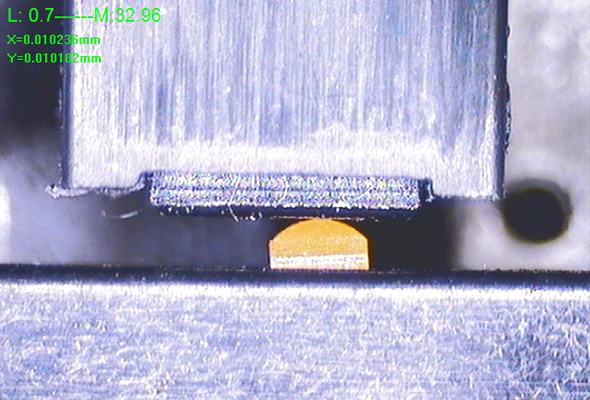

- Utilize sub-nano precision tooling making process
- IQC to measure the plastics dimensions to make sure quality assembly
- Pre-calibration of button feeling
- ORT reliabitility tests
- Comprehensive reliabitlity tests during design stage
- 100% production line test of functions and button feeling
- Pixart state of the art sensor
- Tuning of the firmware to achieve the max potential of the sensor
- Allow user calibration of sensor for specific surface
- Uses only the best switches from the top vendors
- Supports both mechanical or optical switches
- Supports customization of deboucing time ranging from 0ms to 20ms
- Supports pre-calibration of button feeling during manufacturing

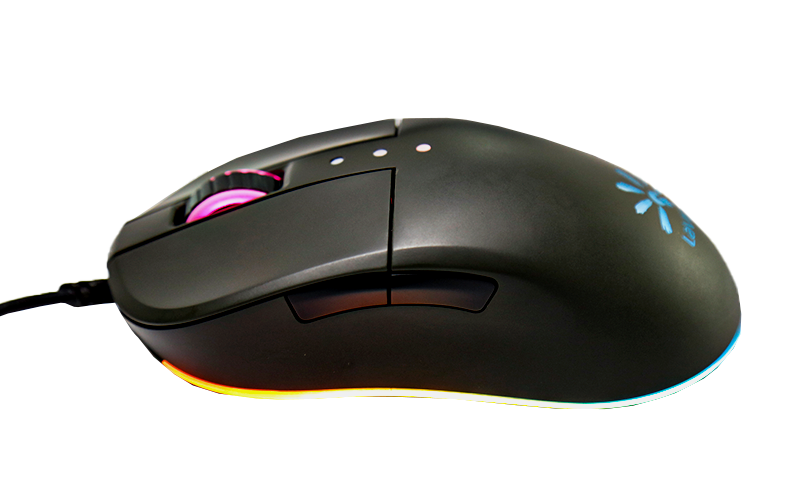

- Multiple RGB zones
- Various and customizable light effects
- Example of light effects:
- Breathing (single color of RGB)
- Color flow
- Comet
